WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | STTOY |
| Model Number: | Alloy cold rolled steel strip |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Pallet(required by the customers' requirements) |
| Delivery Time: | 20-60 working day |
| Payment Terms: | L/C,T/T,Paypal |
| Supply Ability: | 100 tons |
| High Light: | stainless steel strip,cold rolled coil |
||
|---|---|---|---|

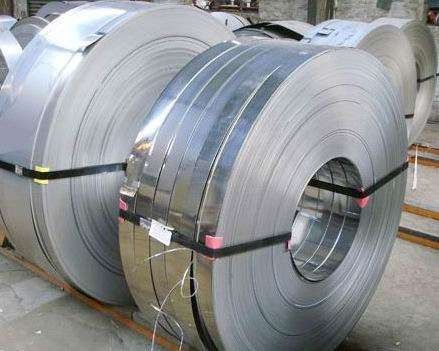

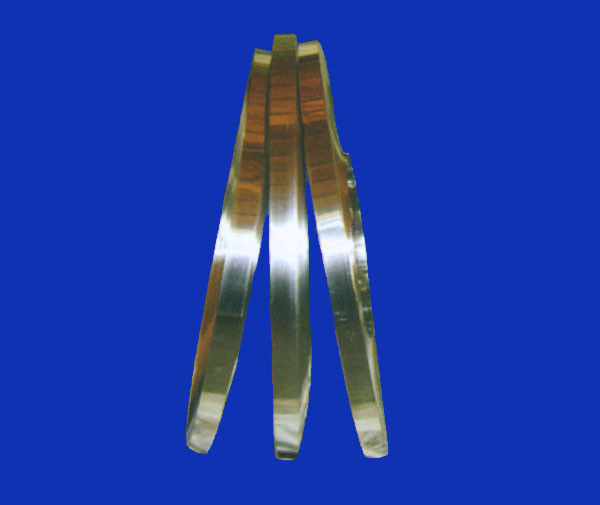

1J34, 1J40, 1J51, 1J52,1J65,1J67,1J83 Thickness:0.05—0.10mm Width:10—200mm Tolerance: +/-0.01mm
Description:
Have Crystalline texture or magnetic texture and rectangular hysteresis loops, higher maximum permeability and saturation magnetic induction.
Applications:
Small and medium-power magnetic amplifiers, pulse transformers, magnetic modulator, non-contact relay contact rectifier, choke, AM, and computing devices and instrumentation components, saturable inductor.
Specifications:
Thickness:0.05—0.10mm
Width:10—200mm
Tolerance: +/-0.01mm.
Other specifications can be customized
Surface:2B
Hardness:240—280HV(As order’s requirements)
MOQ:1 tons
Port of Loading:Shanghai
Payment:T/T
Rectangular hysteresis loop alloy magnetic properties
|
Alloy Name |
Level |
Thickness diameter /mm |
The agnetic permeability μ in 0.8A / m magnetic field strength μ0.8 (mH / m) |
Maximum permeability μm (mH / m) |
The rectangular coefficient of Br / Bm |
Coercivity (saturation magnetic induction) Hc/A·m-1 |
Iron loss /W·kg-1 |
Saturation magnetic induction Bs/T |
|||||
|
P 1/400 |
P 1/3000 |
||||||||||||
|
≥ ≤ |
|||||||||||||
|
1J34 |
|
0.02~0.04 |
— |
60000(75) |
0.90 |
16 |
— |
— |
1.50 |
||||
|
0.05~0.09 |
— |
90000(112.5) |
0.90 |
9.6 |
— |
— |
1.50 |
||||||
|
0.10`0.20 |
— |
110000(137.5) |
0.87 |
8 |
— |
— |
1.50 |
||||||
|
1J40 |
Ⅰ |
0.02 |
— |
400000(500) |
0.97 |
3.2 |
3.0~4.5 |
35~65 |
1.38 |
||||
|
0.05 |
— |
500000(625) |
0.97 |
2.4 |
3.0~4.5 |
35~65 |
1.38 |
||||||
|
Ⅱ |
0.02 |
— |
300000(375) |
0.95 |
4.0 |
3.0 |
35 |
1.38 |
|||||
|
0.05 |
— |
400000(500) |
0.95 |
3.2 |
3.5 |
40 |
1.38 |
||||||
|
0.10 |
— |
500000(625) |
0.95 |
2.4 |
2.5 |
30 |
1.38 |
||||||
|
1J51 |
Ⅰ |
0.02~0.09 |
— |
40000(50) |
0.85 |
20 |
— |
— |
1.50 |
||||
|
0.10 |
— |
40000(50) |
0.85 |
18 |
— |
— |
1.50 |
||||||
|
Ⅱ |
0.02~0.04 |
— |
60000(75) |
0.92 |
15 |
4.0 |
— |
1.50 |
|||||
|
0.05~0.09 |
— |
60000(75) |
0.92 |
15 |
4.5 |
— |
1.50 |
||||||
|
0.10 |
— |
60000(75) |
0.90 |
15 |
5.0 |
— |
1.50 |
||||||
|
Ⅲ |
0.02~0.04 |
— |
76000(95) |
0.94 |
13 |
— |
— |
1.52 |
|||||
|
0.05 |
— |
80000(100) |
0.94 |
11 |
— |
— |
1.52 |
||||||
|
1J52 |
|
0.02~0.04 |
— |
50000(62.5) |
0.90 |
20 |
— |
— |
1.40 |
||||
|
0.05~0.10 |
— |
70000(87.5) |
0.90 |
16 |
— |
— |
1.40 |
||||||
|
1J65 |
|
0.02~0.04 |
— |
100000(125) |
0.90 |
6.4 |
— |
— |
1.30 |
||||
|
0.05~0.09 |
— |
150000(187.5) |
0.90 |
4.8 |
— |
— |
1.30 |
||||||
|
0.10~0.50 |
— |
220000(275) |
0.90 |
3.2 |
— |
— |
1.20 |
||||||
|
1J67 |
|
0.02~0.04 |
— |
160000(200) |
0.90 |
6.4 |
— |
— |
1.20 |
||||
|
0.05~0.09 |
— |
200000(250) |
0.90 |
4.8 |
— |
— |
1.20 |
||||||
|
0.10~0.19 |
— |
250000(312.5) |
0.90 |
4.0 |
— |
— |
1.20 |
||||||
|
0.20~0.50 |
— |
350000(437.5) |
0.90 |
3.2 |
— |
— |
1.20 |
||||||
|
1J83 |
|
0.02~0.04 |
7000(8.8) |
100000(125) |
0.80 |
4.0 |
— |
— |
0.82 |
||||
|
0.05~0.09 |
7000(8.8) |
150000(187.5) |
0.80 |
2.4 |
— |
— |
0.82 |
||||||
|
0.10 |
16000(20) |
180000(225) |
0.80 |
1.6 |
|
|
0.82 |
||||||
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
