WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | STTOY |
| Model Number: | 300 series cold rolled stainless steel coil |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Pallet(required by the customers' requirements) |
| Delivery Time: | 20-60 working day |
| Payment Terms: | L/C,T/T,Paypal |
| Supply Ability: | 100 tons |
| High Light: | cold rolled coil,rolled Steel Coil |
||
|---|---|---|---|

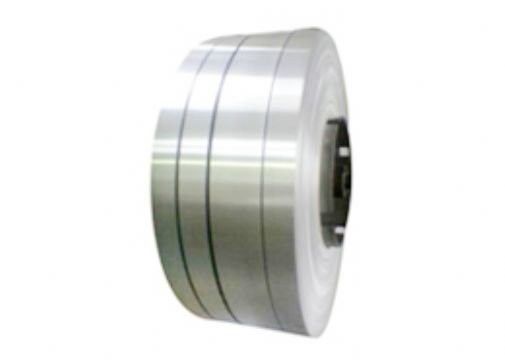

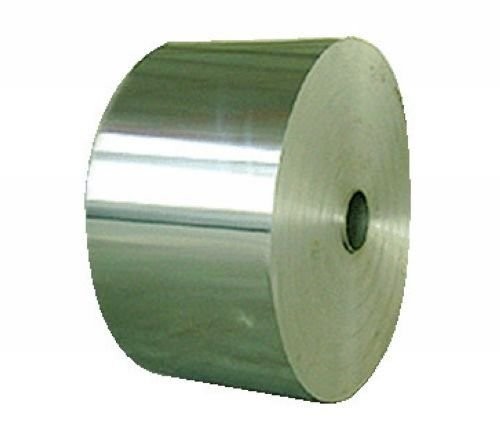

SUS304J1 cold rolled steel coil with 1.0-3.0mm thickness, 200-1219mm width for ship parts
SUS304J1 cold rolled stainless steel coil with thickness:1.0-3.0mm width: 200-1219mm HV160-400 Surface:2B BA
Applications:
304J1 - excellent formability, deep drawing uses - tableware, mug, sink, pot deep drawing purposesauto parts, medical equipment, building materials, chemical, food industry, agriculture, ship parts..304J1 modification - good formability, good surface quality - tableware, kitchen utensils, decorative purposes, etc.
Description:
304J1 stainless steel plate is the material of 304 with the copper-containing material, mainly used for deep processing, and also belongs to the section nickel series.Successfully developed and put into production the 304J1 modifications, compared to the traditional 304 304J1 has the more festival nickel advantages, Today, with excellent performance and price advantage in Wuxi stainless steel market has been a lot of praise merchant.
Specifications:
Chemical composition:
|
TYPE |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Rest |
|
|
≤0.08 |
≤1.70 |
≤3.00 |
≤0.045 |
≤0.030 |
15.0～18.0 |
6.0～9.0 |
Cu:1～3 |
Mechanical Properties :
|
TYPE |
YS(Mpa) |
TS(Mpa) |
EL(%) |
Hv |
|
|
≥155 |
≥450 |
≥40 |
≤200 |
Thinckness:1.0-3.0mm
Width: 200-1219mm
Hardness: HV160-400
width Tolerance:±0.02mm
surface: good arc edge,bright, no scraping wire
The commom size:
0.1*160mm 0.1*300mm 0.1*140mm
0.06*200mm 0.06*300mm 0.06*400mm
0.2*20mm, 0.2*30mm 0.2*40mm
0.2*2mm 0.2*3mm 0.2*4mm
other sizes as your requirements to produce.
Density:
|
Steel Grade |
Density(g/cm3) |
|
201,202,301,302,303, 304,304L,305,321 |
7.93 |
|
316,316L,316S,347,309S,310,310S |
7.98 |
|
405,410,420 |
7.75 |
|
409,430,434 |
7.7 |
Stainless steel theoretical weight formula:
Weight (kg) = thickness (mm) × width (mm) x length (mm) × density values
Stainless steel gravity:
Chromium stainless take 7.75 ton / M3
Chrome-nickel stainless steel take 7.93 ton / M3
Iron take 7.87 ton / M3
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
