Customized JIS G3302 Hot Dip Galvanized Steel Strip With Minimized Spangle
Detailed Product Description

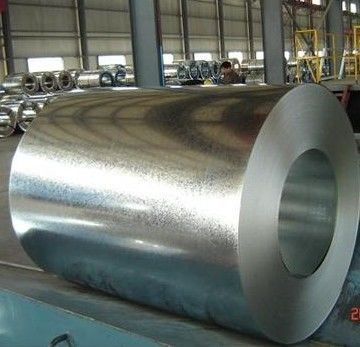

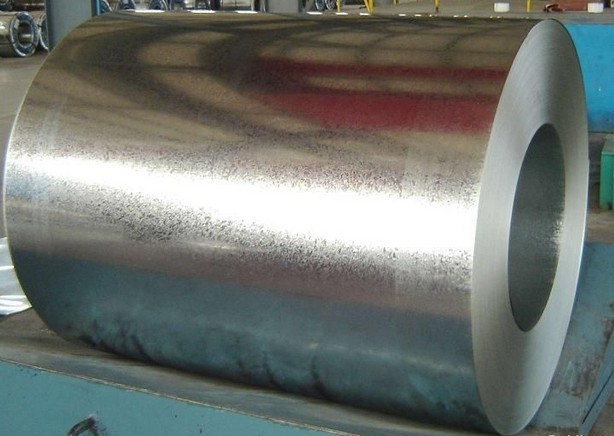

Customized Cutting Minimized Spangle JIS G3302 Standard Hot Dip Galvanized Steel Strip
1) Specification:
a. Thickness: 0.15-3.8mm
b. Width: Min 12mm, Max 700mm
c. Spangle: Regular, Minimized or Zero
d. Inner diameter: 508mm or 610mm
e. Double size galvanized 60-275g /m2.
f. Surface treatment:Chromated, dry or oiled, cr3 treated
g. Skinnpassed: If required
h.Tension levelling: Continuously
2) Steel Grade: DX51, SGCC, SGCD, SGCE, SGCH(Full hard), Q195, SGC490, ASTM A653, Cs-B, S280, S320, S350, S380, DQ, DDQ or equvalents
3). Standard: JIS G3302, ASTM A653, EN 10147
4). Package: with edge protector, steel hoop and seals, Export wrapped ID and OD protection or as per customers' requirements
5). Applications: Profiles, purlins and other basic constructual enduses.
6). Cutting and slitting can be requested as customer's designation.
|
NAME
|
PPGI |
GALVANIZED
|
GALVALUME/ALUZINC
|
|
CERTIFICATE |
ISO9001:2008 |
||
|
STANDARD
|
EN10142 JIS G3302 GB/T-12754-2006 |
ASTM A653 JIS G3302 SGCC/SGCH GB/T2518 European Standard |
ASTM A792 JIS G3321 JIS G3317
|
|
GRADE
|
CGCC CGCH CGCD1-CGCD3 CGC340-CGC570 GRADE
|
SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D |
GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
|
MODEL NO |
0.16MM-1.5MM*1250MM OR UNDER |
(0.12-1.5)*1250MM OR UNDER |
0.16MM-1.5MM*1250MM OR UNDER |
|
TYPE
|
Steel coil Steel sheets/plates Corrugated steel sheets/plates
|
Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Steel coil Steel sheets/plates Corrugated steel sheets/plates
|
|
TECHNIQUE |
Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL |
Hot rolled-cold rolled - galvanized |
Hot rolled-cold rolled -galvalume /Aluzinc
|
|
SURFACE TREATMENT |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating,color |
Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating
|
|
|
APPLICATION |
Structural use ,roofing, commercial use, household appliance, industry, family |
||
|
SPECIAL APPLICATION |
Wear resistant steel, high- strength - steel plate |
||
