| Place of Origin: | China |
|---|---|
| Brand Name: | RISHBIN |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
| Price: | Contact Us |
| Packaging Details: | Standard packing |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets Per Year |
| Material: | Galvanized Steel | Thickness: | 0.4-3.0 Mm |
|---|---|---|---|
| Rigid Of Cutting Blade: | HRC58°━60° | I. D: | 450mm-550mm |
| O. D: | ≤Φ1400mm | Colour: | Blue Or Customer's Request |
| High Light: | roof tile making machine,cold roll forming equipment |
||
Galvanized Steel Cut to Length Cold Roll Forming Equipment with 1300 mm Sheet Width
Main Technical Parameters of Cut to Length Roll Forming Machine
|
Product Name |
Item |
Description |
|
Cut to Length Roll Forming Machine
|
Material |
Galvanized steel and cold roll steel |
|
Thickness |
0.4-3.0 mm |
|
|
Sheet width |
1300mm |
|
|
Coil inner diameter |
Φ450mm-Φ550mm |
|
|
Coil outer diameter |
≤Φ1400mm |
|
|
Decoiler capacity |
≤8T |
|
|
Main motor power |
11.0 kw |
|
|
Line working speed |
0-30m/min |
|
|
Cutting to length precision |
±1.0mm |
|
|
Cutting blade material |
Cr12 |
|
|
Rigid of cutting blade |
HRC58°━60° |
|
|
Electric controlling system |
PLC program equipped for operation |
Detailed Specification
1. Hydraulic decoiler
Its capacity is 8T, discharging steel coil, vertical and horizontal movement by pistons, so that guide coil could be into de-coiler tension roll.

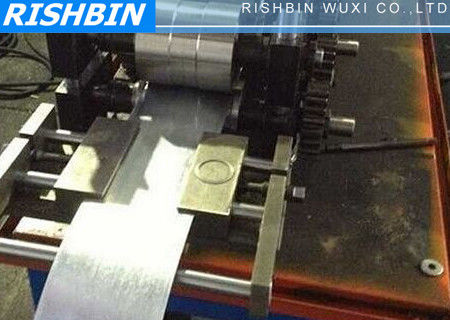

2. Guiding device
Composed by: extension feeding plate, pressing roller.
Function: Assist to feed steel into straighten machine smoothly.
3. Straighten unit
Steel structure: machine base, housing. A couple of straighten rollers, upper roller wrapped with PU, three pcs of leveling rollers
Function: straighten steel sheet. Straighten rollers can be lifted. Clearance between leveling rollers up and down can be adjusted by hand wheel, to suit for different material thickness.
4. Cutting machine
Composed by machine stand, knife rack, guide track, oil pump and knifes.
Function: due to cutting or special situation, to ensure the steel enter into next process in order.
5. Stacker
Composed by machine stand, support base, big diameter steel roller.
6. Electrical system
Composed by stand electrical cabinet, PLC program installed, touch screen etc.
Function: to control the whole production line.
Main Components of Cut to Length Roll Forming Machine
|
NO. |
Name |
Unit |
Qty |
|
1. |
Roll Forming Main Machine |
Set |
1 |
|
2. |
Hydraulic/Manual Decoiler |
Set |
1 |
|
3. |
Feeding & Leveling |
Set |
1 |
|
4. |
PLC Control System |
Set |
1 |
|
5. |
Hydraulic Cutting Device |
Set |
1 |
|
6. |
Hydraulic Station |
Set |
1 |
|
7. |
Manual Out Table |
Set |
1 |
Warranty
The whole equipment including all the components will be guaranteed within one year except improper use.
Company Introduction
Rishbin was founded in 1999. With more than ten years' development, now it becomes a leading professional supplier in the field of roll forming machinery industry, and exports its quality production
line to the markets all over the world.
We are one of the leading suppliers and manufacturer in china and have been supplying and making roll forming equipment for the metal building construction industry for a long time.
