WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | China |
|---|---|
| Brand Name: | KORER |
| Certification: | ISO 9001 And Manufacture License Of Pressure Tube |
| Model Number: | Coil Tube |
| Minimum Order Quantity: | 1 Metric Tons Per Size |
| Price: | Negotiable |
| Packaging Details: | Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle |
| Delivery Time: | 15Days – 45Days Or Depends on the quantity |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10000 Metric Tons Per Year |
| Product Name: | Stainless Steel Coil Tube | Material Grade: | AISI304 / 316L |
|---|---|---|---|
| Outer Diameter: | 3/8" / 1/2" / 5/8" / 3/4" | Manufacturing Mode: | Longitudinally Welded |
| Standard: | ASME SA249 / SA269 | Application: | Heat Exchanger |
| High Light: | stainless steel coil pipe,stainless steel tube coil |
||

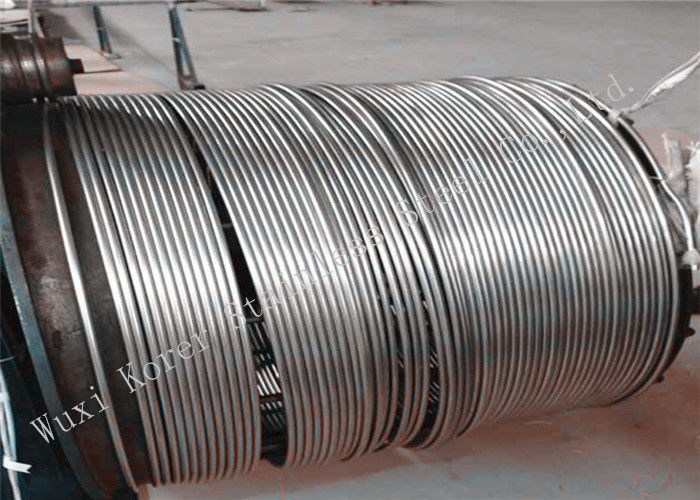

AISI304 / 316L Stainless Steel Coil Tube For Heat Exchanger, Tube Diameter 3/8" / 1/2" / 5/8" / 3/4"
Quick detail:
|
Commodity Name |
Stainless Steel Coil Tube |
|
Manufacturing Mode |
Longitudinally Welded |
|
Material |
AISI304 / 316L |
|
Standard |
ASME SA249 / SA269 |
|
Application |
Heat Exchanger |
|
Delivery Condition |
Bright Annealing Heat Treatment |
Description:
Standards:
|
American standards: |
|
ASTM A249: Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes. |
|
ASTM A269:Standard specification for welded austenitic stainless steel tubing for general service |
|
Size Range: |
||
|
Production |
Outside Diameter |
Wall Thickness |
|
Stainless Steel Coil Tube |
3/8" / 1/2" / 5/8" / 3/4" |
0.028”, 0.035”, 0.065” |
Different Grade Names In Different Countries:
|
America |
Germany |
Japan |
||
|
AISI |
UNS |
EN/DIN |
JIS |
|
|
304 |
S30400 |
1.4301 |
X5CrNi18-10 |
SUS304 |
|
304L |
S30403 |
1.4306 |
X2CrNi19-11 |
SUS304L |
|
316 |
S31600 |
1.4401 |
X5CrNiMo17-12-2 |
SUS316 |
|
316L |
S31603 |
1.4404 |
X2CrNiMo17-12-2 |
SUS316L |
Applications:
|
The Pipes are Used For Boiler, Superheater, Heat-exchanger,Pressure Vessel and Condenser In Thermal Power Station, Nuclear Power Staition, Paper Sugar / Pulp Fertilizers, Petrochemical Industry Etc. |
Specifications:
|
Commodity Name |
Stainless Steel Coil Tube |
|
Standard |
ASME SA249 / SA269 |
|
Material Grade |
AISI304 / 316L |
|
Outer Diameter |
3/8" / 1/2" / 5/8" / 3/4" |
|
Wall Thickness |
0.028”, 0.035”, 0.065” |
|
Length |
Depends on Customers’ Request |
|
Tolerance |
According to Standards |
|
Leakage Test |
ET, RT, UT Or Hydraulic Test Or Air Pressure Test Under Water |
|
Main process |
Welding, Annealing Or 2B Mill Finish |
|
Certificate |
ISO 9001:2008, Manufacture License Of Pressure Tube |
|
Marking |
Brand, Standard, Grade, Size, Length and Heat No. Or Depends On Customer. |
|
Packing |
Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others |
|
Payment Terms |
T/T, L/C at sight |
|
Price Term |
EX-Works, CFR, CNF, CIF, FOB ETC |
|
Delivery Time |
Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request |
|
Capacity |
1000 Tons Per Month |
|
Competitive Advantage:
Test items:
|
|||||
|
1.Chemical Composition(Spectral analysis ) |
|||||
|
2.Mechanical Property(Tensile Test Machine) |
|||||
|
3.Expansion Test(Tensile Test Machine) |
|||||
|
4.Flange Test(Tensile Test Machine) |
|||||
|
5.Flattening Test(Tensile Test Machine) |
|||||
|
6. Hardness(sclerometer) |
|||||
|
7. Metallo analysis(Metallo microscope) |
|||||
|
8.Intergranular Corrosion Test |
|||||
|
9.Surface and Dimension Test |
|||||
|
10.Hydraulic Test(Hydraulic Test Machine) |
|||||
|
11. Air Pressure Test (Air Pressure Test machine) |
|||||
|
12.Eddy Current Test(Eddy Current Machine) |
