WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | China |
|---|---|
| Brand Name: | KORER |
| Certification: | ISO 9001 And Manufacture License Of Pressure Tube |
| Model Number: | OD: 6mm – 400mm, WT:0.3mm – 10mm |
| Minimum Order Quantity: | 1 Metric Tons Per Size |
| Price: | Negotiable |
| Packaging Details: | Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle |
| Delivery Time: | 15-45Days Or Depends on Quantity |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10000 Metric Tons Per Year |
| Item Name: | Welded Stainless Steel Pipe | Material Grade: | TP 201, TP202, TP304, TP304L, TP304H, TP310S, TP316 |
|---|---|---|---|
| Standard: | ASTM A554 | Delivery Condition: | Polish, Satin, Mill Finish |
| Out Diameter: | 6mm – 101.6mm | Wall Thickness: | 0.3mm – 3.5mm |
| High Light: | welding stainless steel pipe,welded stainless steel tubing |
||

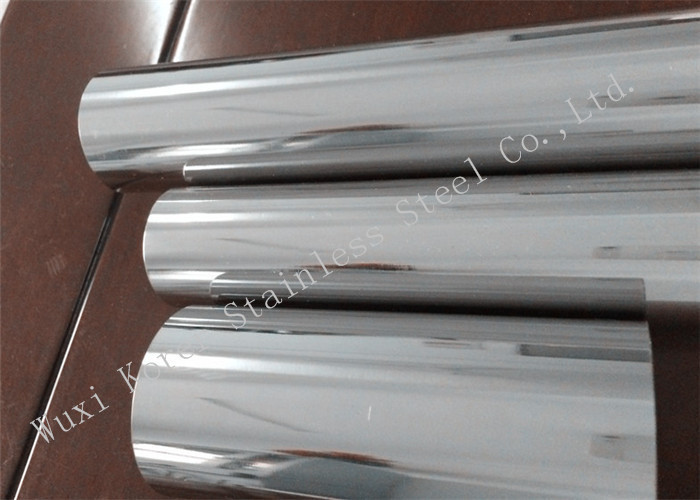

ASTM A554 Decoration Welded Stainless Steel Pipe,As Handrail In Building / Vessel / Train / Metro
Quick detail:
◆ Product:Welded Stainless Steel Pipe
◆Type: TIG Welded
◆ Brand: KORER
◆ Standard: ASTM A554
◆ Application: Decoration As Handrail In Building / Vessel / Train / Metro
◆ Certificate: ISO 9001-2008
Description:
|
Pipe Surface: |
|
Polish Surface:180# / 320# / 400# / 600# Polish Or Mirror Polish. |
|
Satin Finish Surface: 180# / 320# / 400# Grind Finish. |
|
Mill Finish Surface:2B Finish Of the Stainless Steel Bright Coil. |
Standards:
|
A554 Standard specification for welded stainless steel mechanical tubing |
||
|
Item |
Contents |
Requirements |
|
1 |
Materail |
TP 201, TP202, TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317L, TP321 |
|
2 |
Welding Method |
TIG |
|
3 |
Chemical Composition |
Acc.to A688 and A480 |
|
4 |
Heat Treatment |
Bright Annealing Or Not Annealing |
|
5 |
Straightness |
0.76mm/900mm |
|
6 |
Tolerance |
OD A554, WT +/-10% |
|
7 |
Mechanical Property |
Tension Test,Hardness Test |
|
8 |
Surface |
2B Finish, 180# - 600#polish, Mirror Polish 180# - 400#grind |
|
Austenitic Steel: 201, 202, 304,304L, 316,,316L
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications:
|
Standard |
ASTM A554 |
|
Material Grade |
201, 202, 304,304L, 316,,316L |
|
OD(mm) |
6mm – 101.6mm |
|
WT(mm) |
0.3mm – 3.5mm |
|
L(mm) |
500mm – 40000mm |
|
Delivery Condition |
Polish, Satin, Mill Finish |
|
Delivery Time |
15-45 Days Which Depend On the Quantiy |
|
Price Term |
EX-Works, CNF, CRF, CIF, FOB |
|
Payment Term |
T/T, L/C |
|
Packing Method |
Wooden Box Or Seaworthy Bundle |
Competitive Advantage:
1. Supply Best Prices With Good Quality Of The Materials.
2. Prompt Delivery Time Based On Sales Contract.
3. We Have Advanced Ndt Equipments For The Tests Such As Eddy Current Test, Ultrasonic Test,
Hydraulic Test And So On.
4. We Have Complete After-Sale Service To Deal With The Problems In Time.
5. Wooden Case Package Which Is Strong And Suitable For Sea Transport And Which Is Our Main Method To Protect The Tubes.Also We Will Depends On The Sizes Of The Tubes To Select More Ecomony Packing Method By Bundle.
Application:
The Pipes are Used As Railings, Handrail, Equipments For Construction In Building, Vessel, Train, Metro.
