WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | shanxi province , shandong province |
|---|---|
| Minimum Order Quantity: | 3000KGS |
| Price: | USD1000 / Ton |
| Packaging Details: | Polywood case |
| Delivery Time: | 1-30 Days |
| Payment Terms: | T/T , D/P , L/C |
| Supply Ability: | 800 Tons / Month |
| High Light: | stainless steel forged flanges,cast steel flanges |
||
|---|---|---|---|

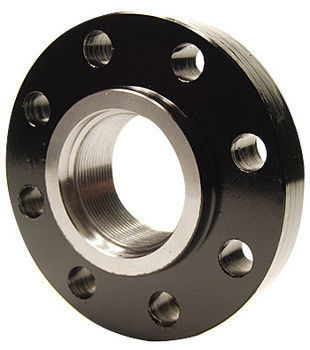

Threaded Flanges With Neck For Petroleum System According To DIN Standard
Description:
This flange is according to DIN standard.The types of the DIN flange include threaded flange, FF flange, WN flange, Screwed flange, Blind flange. The threaded flange is made from stainless steel. Used in machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems, etc
It is a method of connecting pipes, valves, pumps and other equipment to form a pipework systems. It also provides easy access for cleaning, inspection or modifications. Flanges are usually welded or screwed int such systems and then joined with bolts.
Specifications:
| Type | Standard | Size | Pressure | Material |
| WELDING NECK | DIN2631 , 2632 , 2633 , 2634 , 2635 | DN15-DN2000 | PN6-PN100 | SS304/304L, SS316/316L |
| PLATE | DIN2573, 2576, 2502,2503 | DN15-DN2000 | PN6-PN40 | SS304/304L, SS316/316L |
| BLIND | DIN2527 | DN15-DN2000 | PN6-PN100 | SS304/304L, SS316/316L |
| THREADED | DIN2565 DIN2566 DIN2567 | DN15-DN2000 | PN6 PN16 | SS304/304L, SS316/316L |
The flange conforming to DIN2565,2566, Pressure DN15 to DN2000, made from carbon steel or stainless steel. Used in machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems, etc
Type: Threaded Flange
Standard: DIN2565 DIN2566
Pressure: PN6, PN16
Size: DN15-DN2000
Material: SS304/304L, SS316/316L
Coating: Rust-proof oil, yellow paint, galvanized.
Applications:
Machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices
Competitive Advantage: meet various customer’s demand
