WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | DONGGUAN CHINA |
|---|---|
| Brand Name: | SINOWON |
| Certification: | CE |
| Model Number: | W-B92 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | CARTON BOX |
| Delivery Time: | 10 DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 SETS PER MONTH |
| Testing Range: | 50-92HRB | Accuracy: | 0.5HW(5~17HW) |
|---|---|---|---|
| Weight: | 0.5kg | Sheet Thickness: | 0.4mm-6mm |
| Model: | W-B92 | Range: | 0~20HW |
| High Light: | Portable Hardness Testing Equipment,Portable Hardness Testing Machine |
||

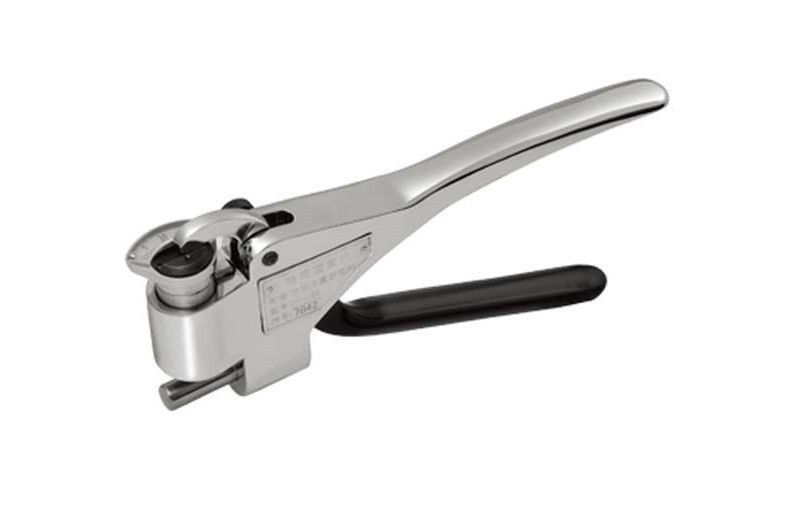

Stainless Steel Portable Hardness Testing Equipment 90-253HV
● W-B92 Webster Hardness Tester with stainless steel structure is a lightweight test equipment, it’s available for measuring soft steel. The hardness measurements is quick and easy, once the work piece be seized, hardness value can be read directly.
● W-B92 Webster Hardness Tester is suitable for testing stainless steel ,low carbon steel, cold-rolled steel, hot-rolled plate, galvanized plate, seamless steel tubes, welded pipe and other steel products. Particularly suitable for the production site, sales site or construction site.
● W-B92 Webster Hardness Tester’s hardness measuring range corresponds to Rockwell 48-100HRB. This hardness measuring range covers almost all common soft steel. The comparative test showed that the measured value between W-B92 and HRB Rockwell hardness tester is turned out an approximate linear relationship. W-B92 Webster Hardness stainless steel can be used as a simple HRB Rockwell Hardness Tester.
Usage:
● Evaluate the effect of heat treatment, the mechanical properties of the material are qualified or not.
● Determine whether the material is processed from inappropriate alloy.
● Distinguish the material’s hardness level. Judge the material is annealed, 1/8 hard, 1/4 hard, 1/2 hard, full hard or other heat treatment.
● Strip steel material’s online hardness inspection and control
Hardness Conversion
Technical Data:
|
Model |
W-B92 |
|
|
Code# |
862-183 |
|
|
Testing Range |
Rockwell Hardness |
50-92HRB |
|
Vicker Hardness |
90-253HV |
|
|
Range |
0~20HW |
|
|
Accuracy |
0.5HW(5~17HW) |
|
|
Repeatability |
0.5HW(5~17HW) |
|
|
Weight |
0.5kg |
|
|
Specimen’s Dimensions |
Sheet Thickness |
0.4mm-6mm |
|
Tube Thickness |
0.4mm-6mm |
|
|
Tube Inner Diameter |
≥Ø10mm |
|
|
Hardness Range |
50~92HRB |
|
|
Application |
Stainless Steel Sheet |
|
Standard Delivery:
|
Product Name |
Code# |
Product Name |
Code# |
Product Name |
Code# |
|
Main Body |
862-183 |
Webster hardness block |
862-603 |
Spare indenter |
862-413 |
|
The correction wrench |
862-713 |
Small screwdriver |
862-813 |
Instrument Box |
862-903 |
