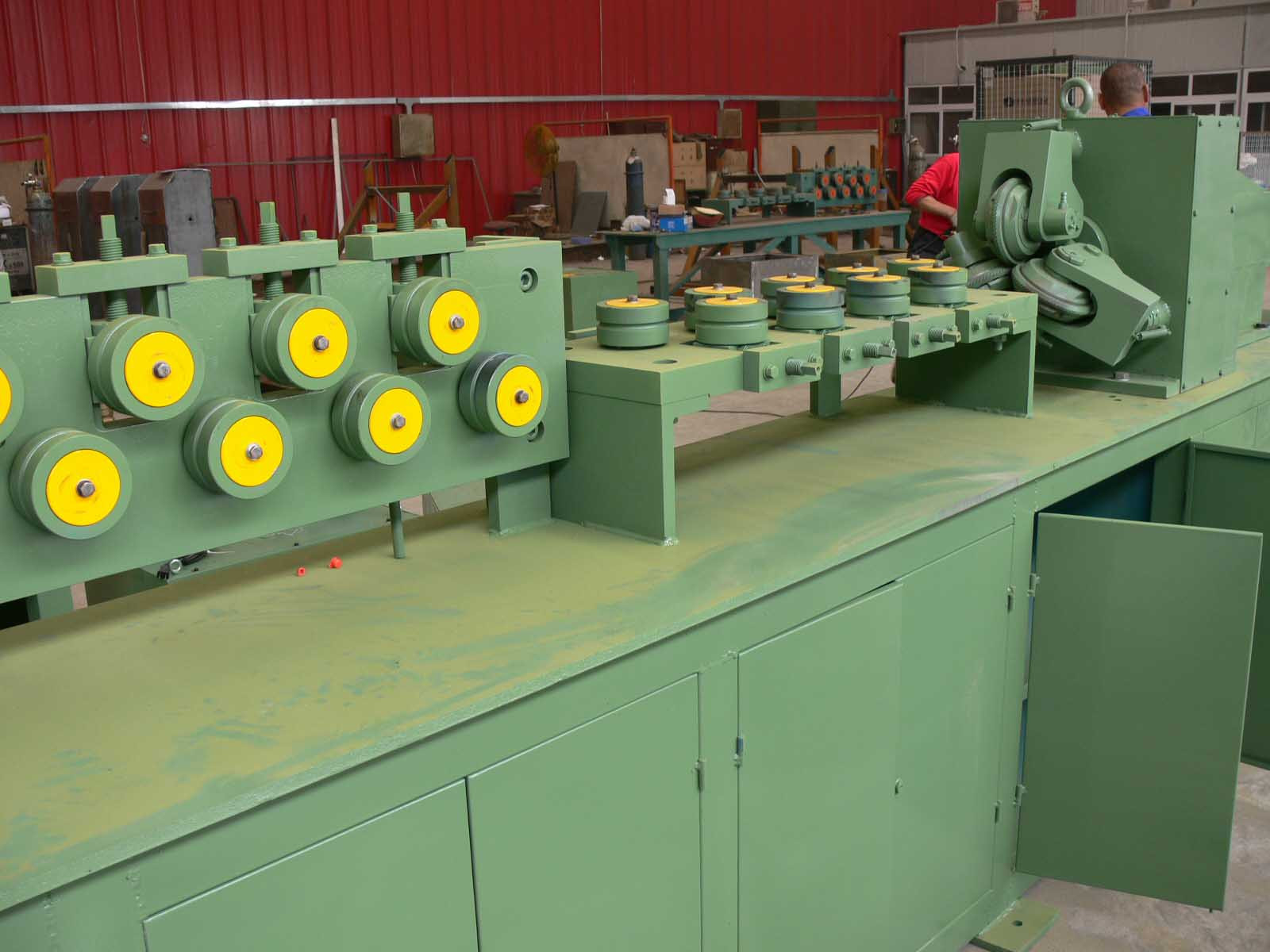

Save Energy Wire Drawing Machine HRC-65 , Cold Roll Coil
Application:
For making low/high carbon,stainless steel reinforcing indented wires.
Good characters:
The most advanced design and technology. Compact /Ecological structure/Low noise/Easy operation/Stable performance/High rolling speed/Accurate size.
The machine is with reversible running rollers, has straightening/cooling system.
Save energy/production cost.
Machine composition:
1. frequency inverter driving motor;
2. Roller: hard alloy steel. (9mo2v)hardness: HRC-65
3. straighten device before input entrance, Straightening wheel: bearing steel
4. automatic take-up device:automatic wire traverse/on-line work with rollers.
5. control system:speed adjustment/reversible running,etc.
Main technical specifications:
|
Model |
Inlet wire mm |
power kw |
speed m/min |
|
WXBY-16YX |
Φ3-16 |
30 kw |
900m(adjustable) |
