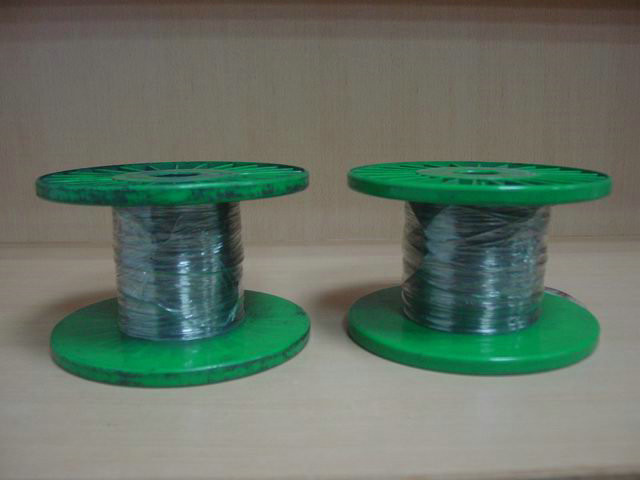

Polished 304 Bright Stainless Steel Wires , AISI / ASTM for coil

Polished 304 Bright Stainless Steel Wires , AISI / ASTM for coil





Quick Detail:



Grade:         304

Standard:      AISI,ASTM

Brand Name:   Tianli

Model Number: AISI 304

Technique:     Hot Rolled

Certification:   SGS,ISO

surface:        Polished





Description:



1)stainless steel wire from dia.0.1mm to 4.0mm
2)Grade:304(L),316(L)
3)Polishing Quanlity,Good knitting function

1)stainless steel wire from dia.0.1mm to 16mm(0.004''-0.630'')

2)grade: 300 series,200 series,400series

3)item:EPQ wire,weaving ,braiding wire,cold heding wire,spring wire,redrawing ,annealing wire,shaped eire,welding  wire,CD bar,CG bar.

4)Electro polishing quality wire, weaving wire,braiding wire,Cold heading wire,spring wire,Redrawing wire,annealing wire ,shaped wire,welding wire,CD bar,CG bar





Applications:



Weaving wire,Braiding wire,Annealing wire,redrawing wire,tie wire,Spring and so on





Specifications:



1) Grade: 201,202,301,303,304,304L,305,316,316L,321,410,416,420,430 etc

2) Standard: ASTM, EN,DIN,JIS

3) Diameter: 0.18-20mm

4) Surface: bright, cloudy,plain,black

5) Type: spring,welded,tig,mig etc

6) Packing: in coil or in spool then in carton or as your request

7) Delivery Detail: 15-20 days after we receive the 30% payment for goods





1,Chemical Component



GRADE	C	Si	Mn	P	S	Ni	Cr	Mo	YP (Mpa)	TS (Mpa)	EL (%)
	MAX	MAX	MAX	MAX	MAX	MAX			MIN	MIN	MIN
304	0.07	1	2	0.045	0.03	8.00-11.00	18.00-20.00	-	205	515	40





2,Tensile strength



Diameter (mm)	Tensile strength(Mpa)				Diameter (mm)	Tensile strength(Mpa)
	Class B	Class C	Class D			Class B	Class C	Class D
0.50	1860~2260	2200~2600	2550~2940		1.80	1520~1810	1760~2110	2010~2300
0.55	1860~2210	2150~2550	2500~2890		2.00	1470~1760	1710~2010	1910~2200
0.60	1760~2160	2110~2500	2450~2840		2.20	1420~1710	1660~1960	1810~2110
0.63	1760~2160	2110~2500	2450~2840		2.50	1420~1710	1660~1960	1760~2060
0.70	1710~2110	2060~2450	2450~2840		2.80	1370~1670	1620~1910	1710~2010
0.80	1710~2060	2010~2400	2400~2840		3.00	1370~1670	1570~1860	1710~1960
0.90	1710~2060	2010~2350	2350~2750		3.20	1320~1620	1570~1860	1660~1910
1.00	1660~2010	1960~2300	2300~2690		3.50	1320~1620	1570~1860	1660~1910
1.20	1620~1960	1910~2250	2250~2550		4.00	1320~1620	1520~1760	1620~1860
1.40	1620~1910	1860~2210	2150~2450		4.50	1320~1570	1520~1760	1620~1860
1.60	1570~1860	1810~2160	2110~2400		5.00	1320~1570	1470~1710	1570~1810





Competitive Advantage:



1  Suitable for using making mattress spring

2  can be made into optical cable core and steel wire strand

3  we are standard maker

4  our annual output is over 20000MT

5  we have attained ISO9001 quality  management  system certification

and the ISO14001 quality environment system certification

6  we have more than 200 member staff
