JIS / EN / DIN Dip Cold Rolled Steel Coils , Galvanized Steel Coil

Basic Information

Place of Origin:	China
Brand Name:	Maxteel
Certification:	CE ISO

Payment Terms:	L/C,T/T,Paypal

Get Best Price Contact Now

High Light:

stainless steel coils

cold rolled coil

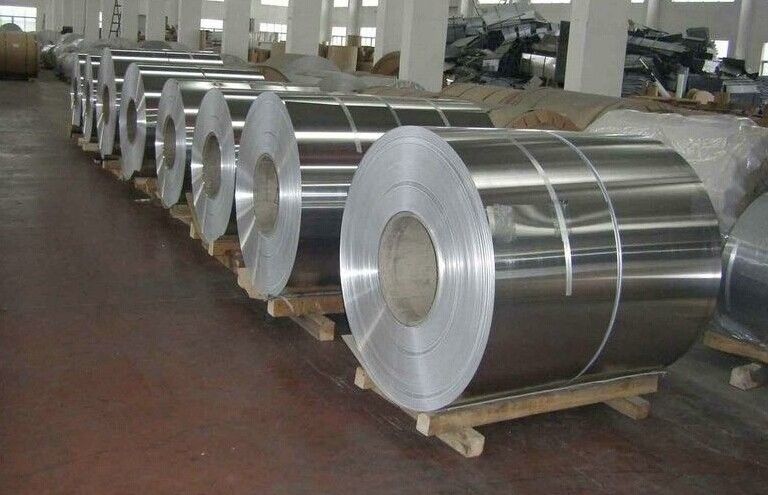

JIS / EN / DIN Dip Cold Rolled Steel Coils , Galvanized Steel Coil

Product Name:	Dip Galvanized Steel	Grades:	SPCC,SPCD,SPCE,SPCF
Standard:	JISG3141-2005,EN10130-1999,ASTM A1008/A1008M-2000	Certification:	ISO9001:2008
Brand Name:	OWN	Model Number:	OWN
Place Of Origin:	Zhejiang, China

High Quality Smooth Cold Rolled Steel Coil DC01 SPCC dip galvanized steel

Mechanical Properties

Purpose	Grades	Yield strength/Re/MPa(1)	Tensile strength/ Rm/MPa	Elongation/A80/%(2)	r90	n90
Commercial	DC01	≤280	270-410	≥28	-	-
Drawing	DC03	≤240	270-370	≥34	≥1.3	-
1. If the yield point is not pronounced, the value applies to Rp0.2; if the yield point is pronounced, the value applies to Rel. 2. When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the minimum value for elongation is reduced by 2 units. For a thickness less than or equal to 0.5 mm, the minimum value is reduced by 4 units.

Purpose	Grades	Yield strength/Re/MPa(1)	Tensile strength/ Rm/MPa	Elongation/A80/%(2)					180oBend test
Purpose	Grades	Yield strength/Re/MPa(1)	Tensile strength/ Rm/MPa	h < 0.4	≥0.4~<0.65	≥0.6~<1.0	≥1.0~<1.6	≥1.6~<2.0	b≥20mm
Commercial	SPCC	-	≥270	≥32	≥34	≥36	≥37	≥38	d=0a
Deep drawing	SPCD	≤240	≥270	≥36	≥36	≥38	≥39	≥4O	d=0a

Applications for cold rolled Steel coil

1) For the further producing of hot dip galvanized steel products
2) Cold rolled Steel Coil: Auto manufacture, Oil drum, Transformer's tank panel, Furniture etc.

Standard and Grade

Standard	JIS G3141-2005	EN 10130-1999	ASTM A1008/A1008M-2000	DIN1623.1-1983
Grade	SPCC	DC01	CS B	St12
	SPCD	DC03	DS A, DS B, DS C	St13
	SPCE	DC04	DDS	St14
	SPCF	DC05	EDDS	St15
	SPCG	DC06	EDDS	St16, St17
