WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CMEC |
| Certification: | ISO,CE |
| Model Number: | CMEC-JSL-2*1300 |
| Minimum Order Quantity: | 1 SETS |
| Price: | According to your detailed requirments |
| Packaging Details: | export standard packing |
| Delivery Time: | 90-180 days when received the downpayment |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 5 sets/per month |
| Cut To Length Line Control:: | PLC | Color:: | According To Your Requirments |
|---|---|---|---|
| Condition:: | New | Cut To Length Line Dimension:: | According To Design |
| Cut To Length Line OEM:: | Accept Custom | Cut To Length Line Voltage:: | 380/440 50/60HZ |
| Cut To Length Line Warranty: | 12 Months | Cut To Length Line After-sales Service:: | Engineers Available To Service Machinery Overseas |
| Slitting Srrips: | 12-30 | Thickness(mm): | 0.2-2 |
| Width(mm): | 400-1300 | Slitting Accuracy(mm): | ±0.05 |
| Slitting Speed(m/min): | 50-200 | Cut To Length Line Actual Parameter:: | Accroding To Actual Design |
| High Light: | automatic shearing machine,cut to length machine |
||

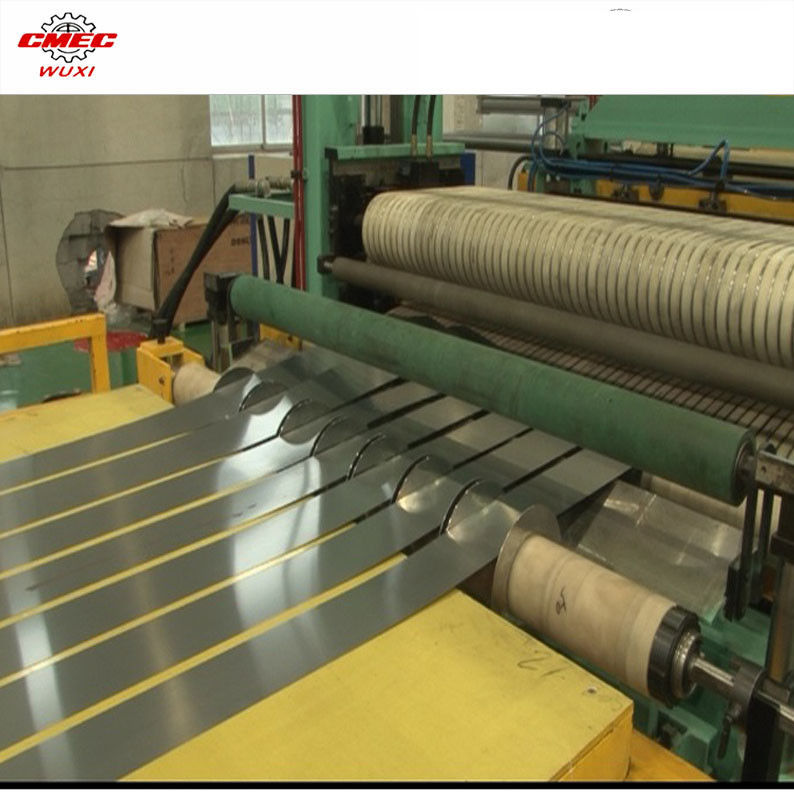

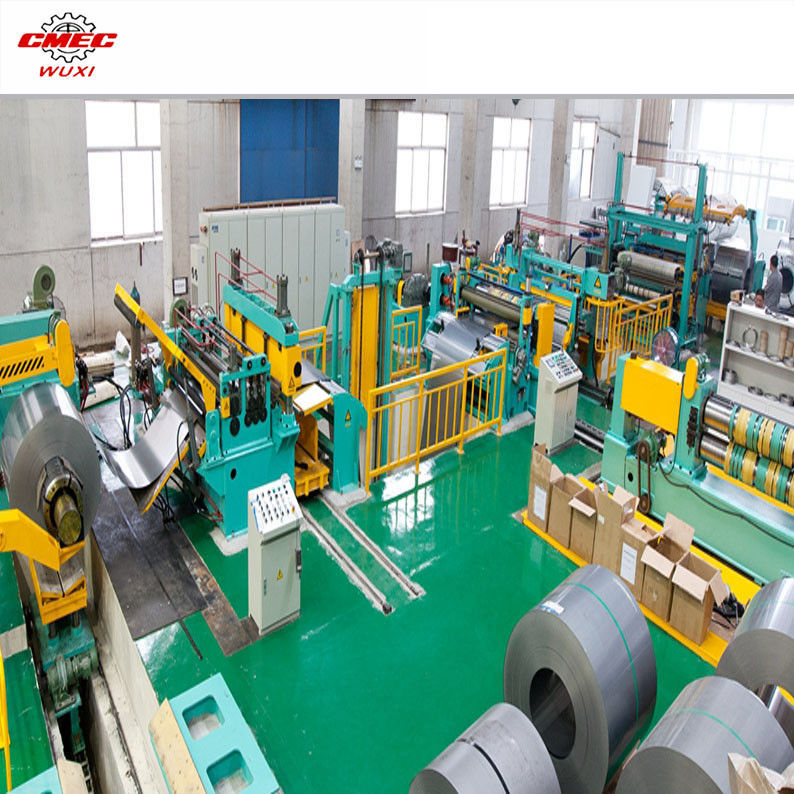

GMC 380V Steel Sheet Cut To Length Machine Electric For Stainless Steel Coil
Specifications
cut to length line
1. We do Care Details;
2. We do Use Qualified Material;
3. We do Use High Precision Tooling Treatment;
| Product Detail |
1.components
1, paper collecting device 1set
2, Coil loading car(with base) 1set
3, Decoiler (with arm) 1set
4, Coil guide device 1set
5, Squeeze roller and accurate fifteen-roller leveler 1set
6, Loop 1set
7, Guiding device 1set
8, Film device 1 set
9, Sizing leveler with 5 rollers 1set
10, Fly shear 1set
11, Belt transporting device 1set
12, Stacker 1set
13, Platform 1set
14, Stacking dolly 2sets
15, Hydraulic, lubrication and pneumatic system 1set
16, Electric system 1set
2.technical parameters
2.1 Steel coil parameters
1. Suitable material: Stainless steel coil,
2. Yield stress: σs≤205Mpa σb≤650Mpa
3. Coil thickness: 0.5~3mm
4. Coil width: 500~1600mm
5. Coil ID: Φ508/Φ610
6. Coil OD: Φ1000~Φ1600mm m
7. Coil weight: ≤10T
2.2 Finished products parameters
1. Cut to length: 500-6000mm
2. Tolerance of length: ≤±1/3000
3. Tolerance of catercorner:≤±1.5/3000
4. Stack weight:3000kg,max. height 400mm
