WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | STTOY |
| Model Number: | Alloy cold rolled steel strip |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Pallet(required by the customers' requirements) |
| Delivery Time: | 20-60 working day |
| Payment Terms: | L/C,T/T,Paypal |
| Supply Ability: | 100 tons |
| High Light: | stainless steel strip,cold rolled coil |
||
|---|---|---|---|

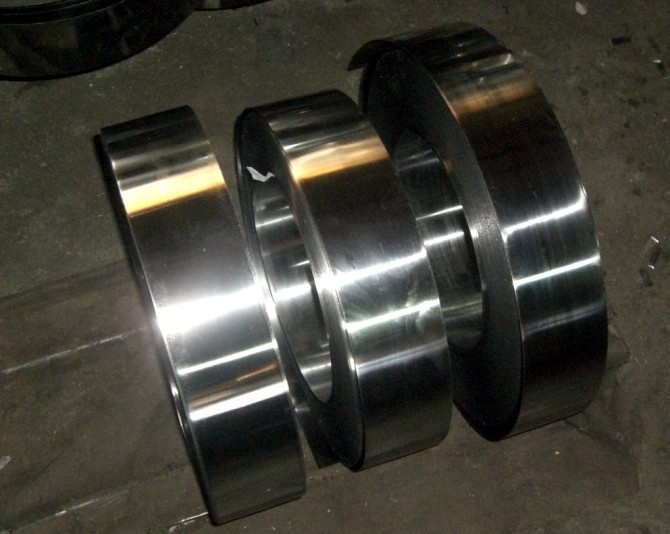

Customized high resistivity 2B and 1J87.1J88.1J89.1J90,1J91 Cold Rolled Coils
1J87.1J88.1J89.1J90,1J91 0.03-0.10*180-200mm,>0.10-1.00*10-200mm Hv_240-280 Surface 2B(Or customized)
Description:
Having a high initial permeability, high resistivity, hardness, strength, abrasion resistance, magnetic on the stress is not sensitive.
Applications:
Tape recorder, video recorder, digital movie projector and computer tape drive head chip, micro motors, transformers, sensors, magnetic amplifiers and other high-frequency inductive element core.
Specifications:
Thickness:0.02—0.10mm Width:180—200mm
Tolerance: +/-0.01mm.
Other specifications can be customized
Surface:2B
Hardness:240—280HV(As order’s requirements)
MOQ:1 tons
Port of Loading:Shanghai
Payment:T/T
Chemical composition:
|
Alloy name |
c |
p |
s |
Mn |
Si |
Ni |
Mo |
Al |
Nb |
Ti |
Fe |
|
<= |
|||||||||||
|
1J87 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
<=0.30 |
78.5-80.5 |
1.6-2.2 |
- |
6.5-7.5 |
- |
rest |
|
1J88 |
0.03 |
0.020 |
0.020 |
<=0.60 |
<=0.30 |
79.5-80.5 |
- |
- |
7.5-9.0 |
- |
rest |
|
1J89 |
0.03 |
0.020 |
0.020 |
0.50-1.00 |
<=0.30 |
78.5-80.5 |
3.5-4.5 |
- |
3.0-3.6 |
1.8-2.8 |
rest |
|
1J90 |
0.03 |
0.020 |
0.020 |
<=0.60 |
<=0.30 |
79.0-80.0 |
1.8-2.2 |
0.40-0.60 |
4.8-7.2 |
- |
rest |
|
1J91 |
0.03 |
0.020 |
0.020 |
<=0.60 |
<=0.30 |
78.5-80.5 |
- |
0.90-1.20 |
7.7-8.4 |
- |
rest |
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
