WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | STTOY |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Pallet(required by the customers' requirements) |
| Delivery Time: | 20-60 working day |
| Payment Terms: | L/C,T/T,Paypal |
| Supply Ability: | 100 tons |
| High Light: | cold rolled coil,stainless steel coils |
||
|---|---|---|---|

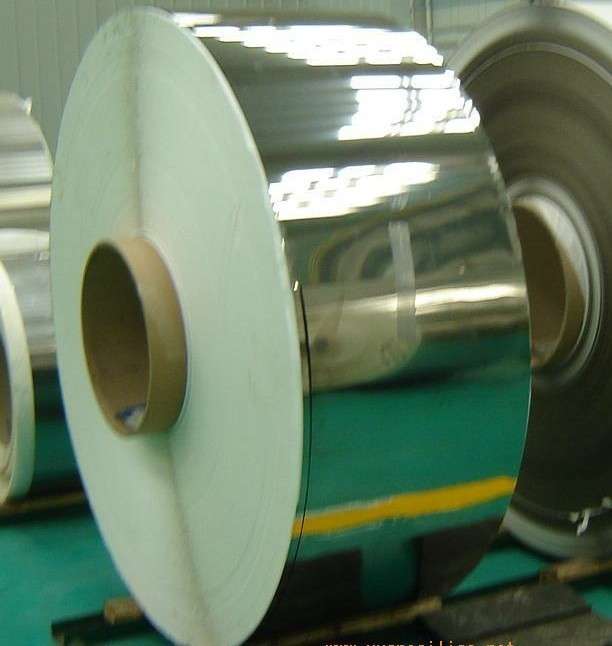

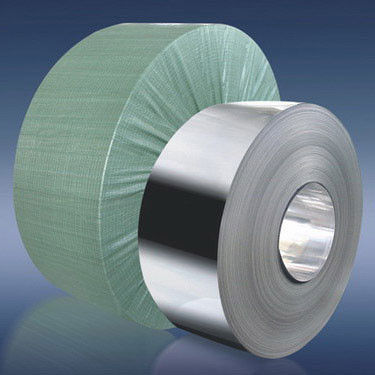

Customized bright SUS304L cold rolled stainless steel coil for heat-resistant parts
SUS304L cold rolled stainless steel coil with thickness:1.0-3.0mm width: 200-1219mm HV160-400 Surface:2B BA
Density:
|
Steel Grade |
Density(g/cm3) |
|
201,202,301,302,303, 304,304L,305,321 |
7.93 |
|
316,316L,316S,347,309S,310,310S |
7.98 |
|
405,410,420 |
7.75 |
|
409,430,434 |
7.7 |
Stainless steel theoretical weight formula:
Weight (kg) = thickness (mm) × width (mm) x length (mm) × density values
Stainless steel gravity:
Chromium stainless take 7.75 ton / M3
Chrome-nickel stainless steel take 7.93 ton / M3
Iron take 7.87 ton / M3
Description:
Austenitic steels, uses the most widely used, excellent corrosion resistance, heat resistance, low temperature strength and mechanical properties, single-phase austenite hardening heat treatment (non-magnetic, temperature-196-8000C). With SUS304 all characteristics, corrosion resistance and excellent heat resistance; after welding or eliminate stress, can also maintain good corrosion resistance, drawability, excellent polishing properties.SUS304L with SUS304 all features; excellent in corrosion resistance and heat resistance; or eliminate stress, able to maintain good corrosion resistance after welding; deep drawability and excellent polishing properties.
Applications:
Applied to the high resistance to intergranular corrosion, chemical, coal, petroleum environment instruments and equipment; outdoor decorative materials, heat-resistant parts and heat treatment difficult parts. Frozen Container Frame and exterior materials, car exhaust pipe (800 ℃), heat-resistant equipment parts.
Specifications:
Chemical composition:
|
Name |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
|
304L |
≤0.030 |
≤2.00 |
≤1.00 |
≤0.045 |
≤0.03 |
18.00～20.00 |
9.00～13.00 |
Mechanical Properties :
|
σb (MPa) |
σ0.2 (MPa) |
δ5 (%) |
ψ (%) |
Hardness |
|
≥520 |
≥205 |
≥40 |
≥60 |
≤187HB;≤90HRB;≤200HV |
Thinckness:1.0-3.0mm
Width:200-1219mm
Hardness: HV160-600
width Tolerance:±0.02mm
surface: good arc edge,bright, no scraping wire
The commom size:
0.1*160mm 0.1*300mm 0.1*140mm
0.06*200mm 0.06*300mm 0.06*400mm
0.2*20mm, 0.2*30mm 0.2*40mm
0.2*2mm 0.2*3mm 0.2*4mm
other sizes as your requirements to produce.
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
