WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | China |
|---|---|
| Brand Name: | Zhongyuan |
| Certification: | CE |
| Model Number: | Z100-300 |
| Minimum Order Quantity: | One set |
| Price: | Negotiable |
| Packaging Details: | One machine requires 1X40GP container. Anti-rust anti-corrosion treatment, suiting for long time sea shipping. |
| Delivery Time: | within 60days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Roller Material: | CR12 Mould Steel | Cutter Material: | Cr12 Mould Steel |
|---|---|---|---|
| Shaft For Rollers: | 82mm Solid Steel | Main Power: | 15kw |
| Hydraulic Power: | 5.5KW | Cutting Style: | Automatic Hydraulic Cutting |
| Controller: | Mitsubishi PLC And Transformer | Punching: | Punching Or No Punching For Option |
| Machine's Size: | 10500X1200X1500mm (LXWxH) | Quality System: | ISO9001 |
| High Light: | z purlin roll forming machine,roll forming machine for purlin |
||

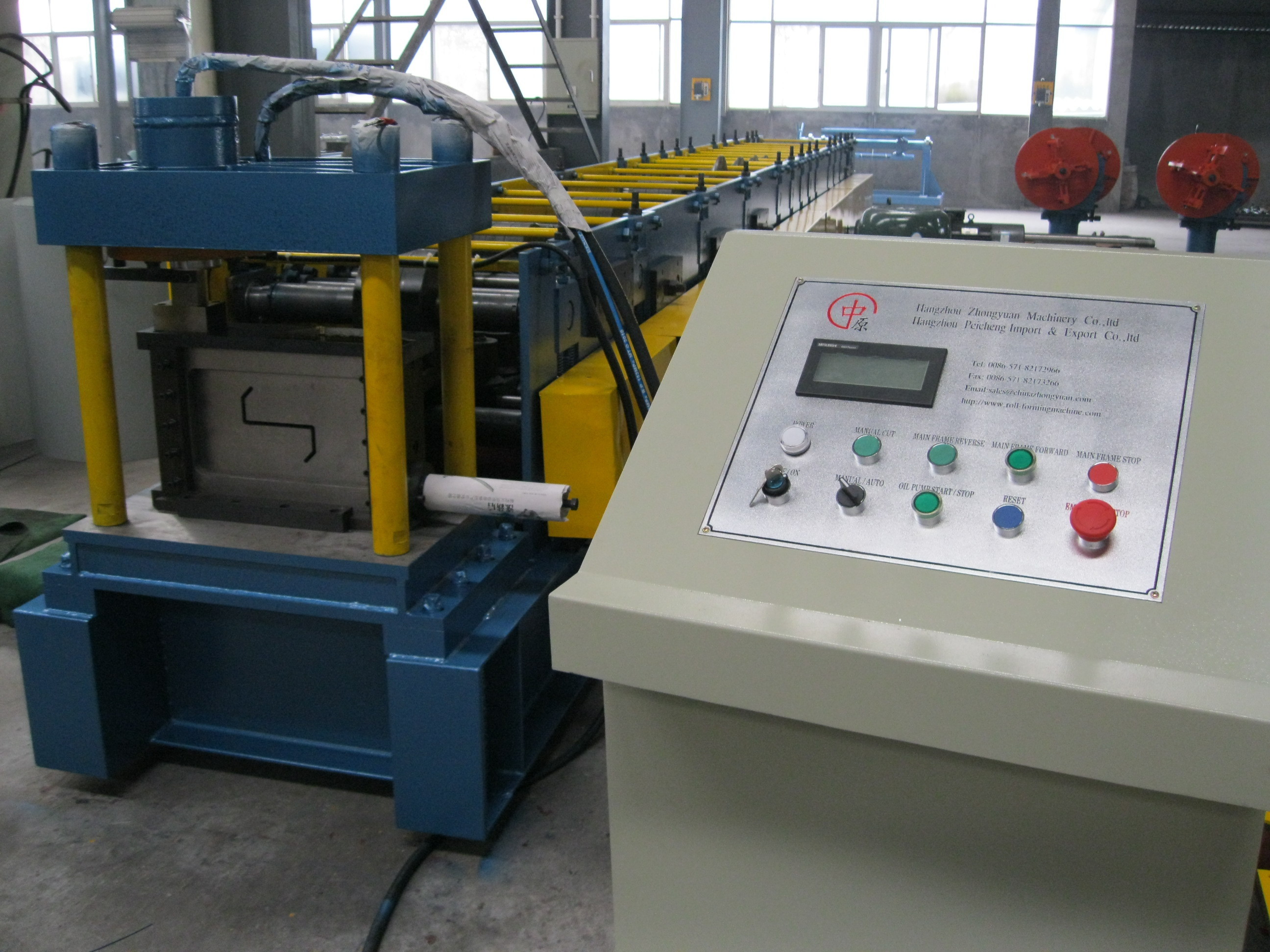

Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Feature of Z Purlin roll forming machine
One machine can produce different sizes of purlines.
Technical data of Z purlin roll forming machine
|
Suitable Material |
Cold-rolled steel strip and heat-treated galvanized steel strip |
|
Thickness of raw material |
1.5-3.0mm (235-345Mpa) |
|
Size of Z purlin |
100-300mm adjustable (special size available) |
|
Material of roller |
Cr12 mould steel being quenched treatment,HRC58-60 |
|

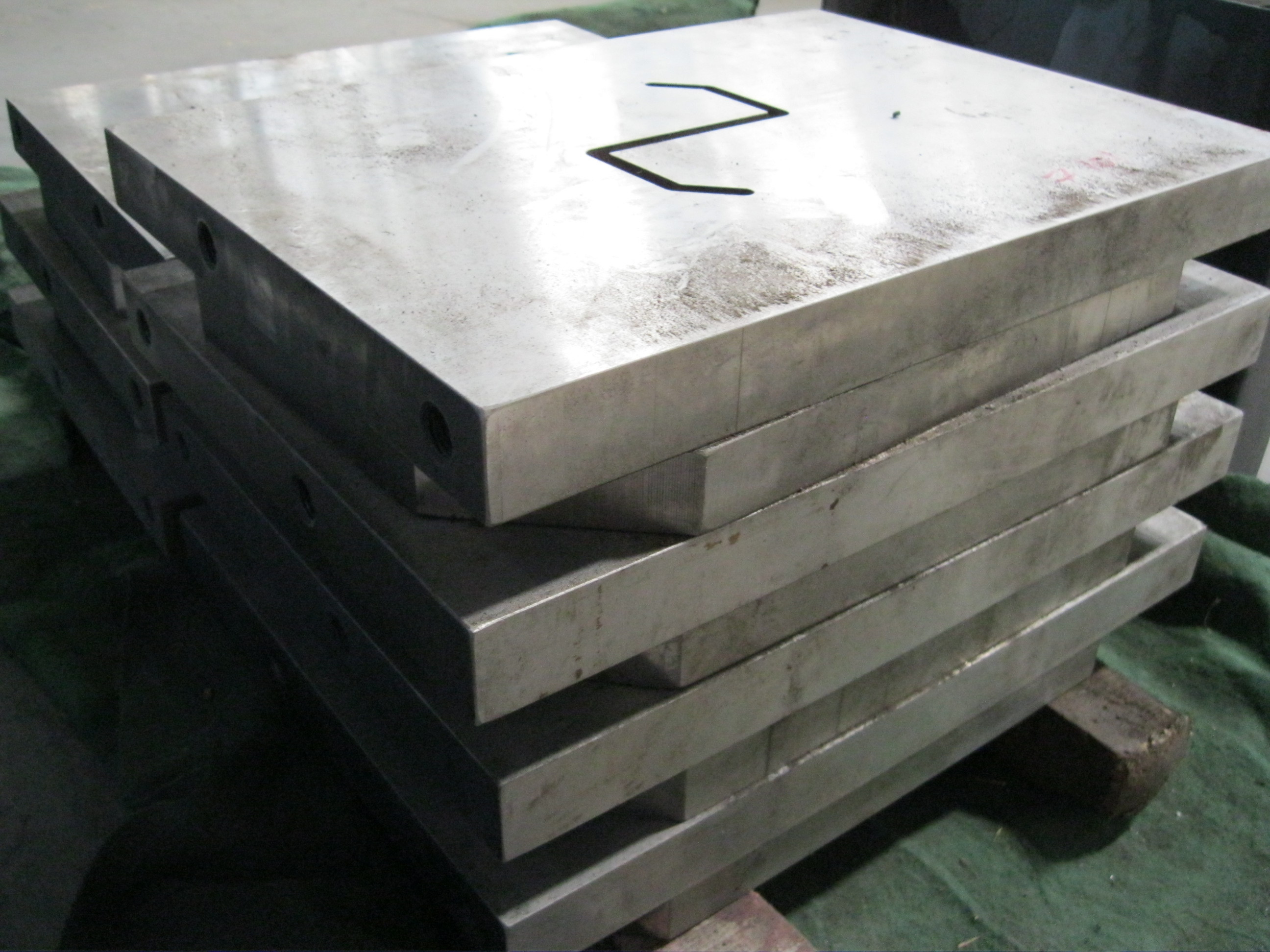

Material of cutter blade& punching die |
Cr12 mould steel with quenched treatment, HRC58-60 |
|
Material of shaft |
High quality 45# steel with heat treatment. Roller grinder milling. |
|
Forming speed |
about 10-12m/min |
|
Power Requiremen |
Main motor power: 15 Kw(Depend on final design) |
|
Hydraulic station power: 5.5Kw (Depend on final design) |
|
|
Diameter of shaft for rollers |
82mm |
|
Controlling system |
Mitsubishi PLC & converter |
|

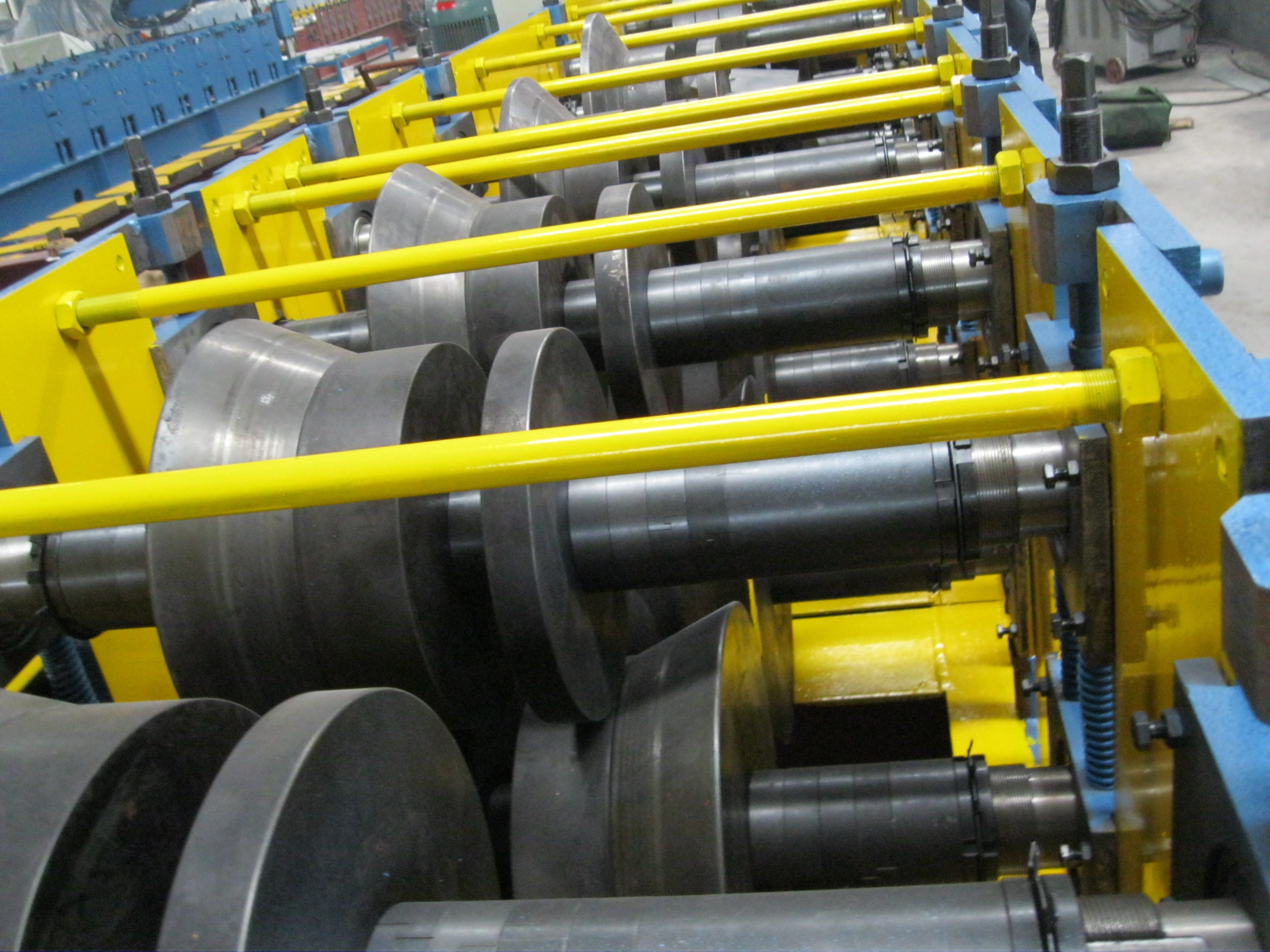

Quantity of rollers |
about 15 stations for main rollers |
|
Weight of machine |
About 9000KGS |
|
Size of machine installation |
About 19 m x 2.3 m x1.5m |
Product application of Z shape purlin roll forming machine
They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Our Metal Z shape Purlin Roll Forming Machine’s advantages
1. Anti-rust roller: Cr12 mould steel with quenched treatment, long life time.
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine’s lifetime more than 15 years.
Certificate: ISO 9001, CE
