WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | OWN |
| Certification: | ISO9001:2008 |
| Model Number: | OWN |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD 600-700 Per Ton |
| Packaging Details: | Seaworthy packings into container or bulk vessel |
| Delivery Time: | Based on client's needs |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500,000 tons per Year |
| Product Name: | Bright Annealing Steel Coil | Grades: | DC01,DC03 |
|---|---|---|---|
| Standards: | EN10130:DC04,DC03; Q/TB302,JIS G3141:SPCC,SPCD | Certification: | ISO9001:2008 |
| Brand Name: | OWN | Model Number: | OWN |
| Place Of Origin: | Zhejiang, China | ||
| High Light: | galvanized steel coils,cold rolled steel strip,cold rolled steel coils |
||

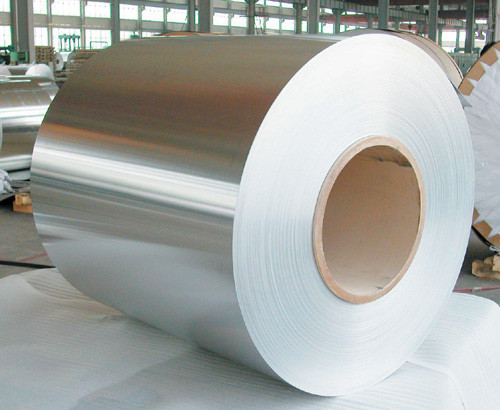

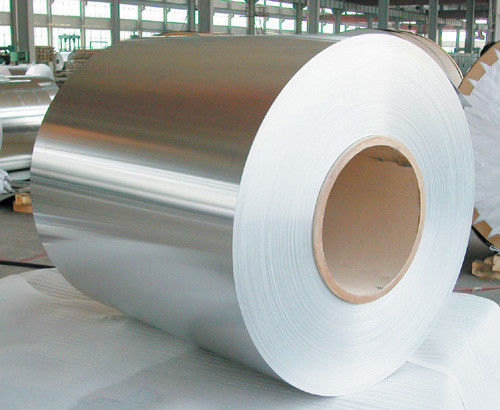

Bright Annealing Cold Rolled Steel Coil Zinc Coated Steel DC04 EN10268 EN10130
STANDARDS
Q/TB303,EN 10130:DC04,DC03; Q/TB302,JIS G3141 :SPCC,SPCD
EN 10130:DC04; JIS G3141 :SPCE;
Q/TB303-2008:DC01( O3), DC03( O3);
STANDARDS :2010JX(25) :TYH-2; 2010JX(12) :TYH-3; 2010JX(22) :TYH-4;
STANDARDS :GBT11253-2007: Q235; 2011 JX(19):LQ215; 2011 JX(21):THD
STANDARDS : EN10268:2006:HC340LA
STANDARDS : 2010JX(42):TGW800-1, TGW1000A-1, TGW1000B-1
Application and Features
With good weldability, formability and machinability,the products are mainly used in building ,appliances, automobile and general structure.
Mechanical Properties
|
Purpose |
Grades |
Yield strength/Re/MPa(1) |
Tensile strength/ Rm/MPa |
Elongation/A80/%(2) |
r90 |
n90 |
|
Commercial |
DC01 |
≤280 |
270-410 |
≥28 |
- |
- |
|
Drawing |
DC03 |
≤240 |
270-370 |
≥34 |
≥1.3 |
- |
|
1. If the yield point is not pronounced, the value applies to Rp0.2; if the yield point is pronounced, the value applies to Rel. 2. When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the minimum value for elongation is reduced by 2 units. For a thickness less than or equal to 0.5 mm, the minimum value is reduced by 4 units. |
||||||
|
Purpose |
Grades |
Yield strength/Re/MPa(1) |
Tensile strength/ Rm/MPa |
Elongation/A80/%(2) |
180oBend test |
||||
|
h < 0.4 |
≥0.4~<0.65 |
≥0.6~<1.0 |
≥1.0~<1.6 |
≥1.6~<2.0 |
b≥20mm |
||||
|
Commercial |
SPCC |
- |
≥270 |
≥32 |
≥34 |
≥36 |
≥37 |
≥38 |
d=0a |
|
Deep drawing |
SPCD |
≤240 |
≥270 |
≥36 |
≥36 |
≥38 |
≥39 |
≥4O |
d=0a |
