WE DELIVER PROPOSALS AND SERVICES THAT MEET THE NEEDS OF OUR CUSTOMERS' PROCESS.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | STTOY |
| Model Number: | Alloy cold rolled steel strip |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Pallet(required by the customers' requirements) |
| Delivery Time: | 20-60 working day |
| Payment Terms: | L/C,T/T,Paypal |
| Supply Ability: | 100 tons |
| High Light: | galvanised steel strip,cold rolled coil |
||
|---|---|---|---|

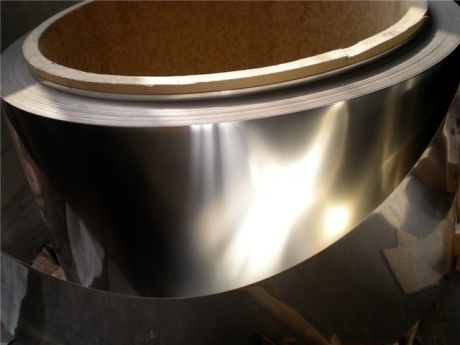

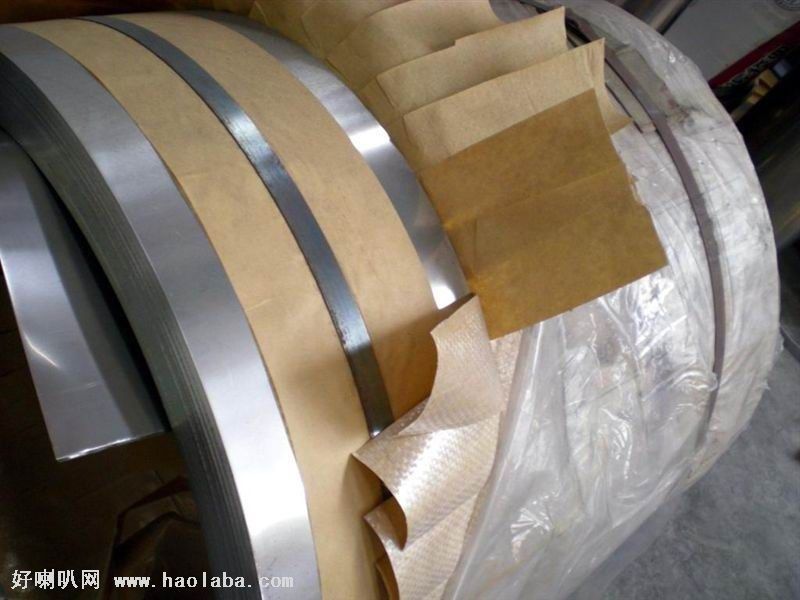

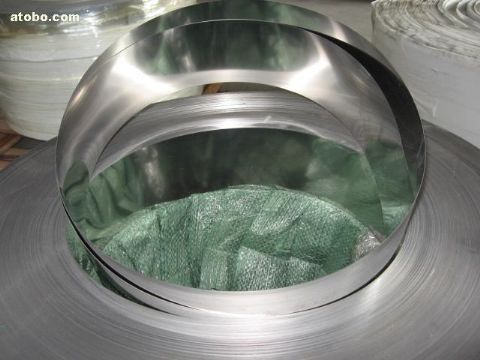

1J34, 1J40, 1J51,1J52, 1J65,1J67,1J83 Soft magnetic alloys with retangular hysteresis loop
Description:
Having a crystalline structure or a magnetic texture or a rectangular hysteresis loop, and a high maximum magnetic permeability and saturation magnetic induction.
Applications:
Magnetic amplifiers of the small and medium power bipolar pulse transformer saturation inductance, magnetic modulator, non-contact relay contact rectifier, choke, AM, spike suppressors and computing devices and instrumentation components.
Specifications:
1J34:0.02-0.20*10-200mm
1J40,1J51,1J52,1J83:0.02-0.10*10-200mm
1J65,J67:0.03-0.50*10-200mm
Tolerance: +/-0.01mm.
Other specifications can be customized
Surface:2B
Hardness:240—280HV(As order’s requirements)
MOQ:1 tons
Port of Loading:Shanghai
Payment:T/T
Chemical composition:
|
Alloy name |
c |
p |
s |
Mn |
Si |
Ni |
Cr |
Co |
Mo |
Cu |
Fe |
|
<= |
|||||||||||
|
1j34 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
33.5-35.0 |
- |
28.5-30.0 |
2.8-3.2 |
<=0.20 |
rest |
|
1j40 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
39.0-41.0 |
- |
24.5-25.5 |
3.8-4.2 |
- |
rest |
|
1j51 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
49.0-50.5 |
- |
- |
- |
<=0.20 |
rest |
|
1j52 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
49.0-51.0 |
- |
- |
1.8-2.2 |
<=0.20 |
rest |
|
1j65 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
64.5-66.0 |
- |
- |
- |
<=0.20 |
rest |
|
1j67 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
64.5-66.0 |
- |
- |
1.8-2.2 |
<=0.20 |
rest |
|
1j83 |
0.03 |
0.020 |
0.020 |
0.30-0.60 |
0.15-0.30 |
78.5-79.5 |
- |
- |
2.8-3.2 |
<=0.20 |
rest |
Competitive Advantage:
First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
